Description
299-T6F1.00SV – Thermal Wrap, FG/Aluminized 4’x1″

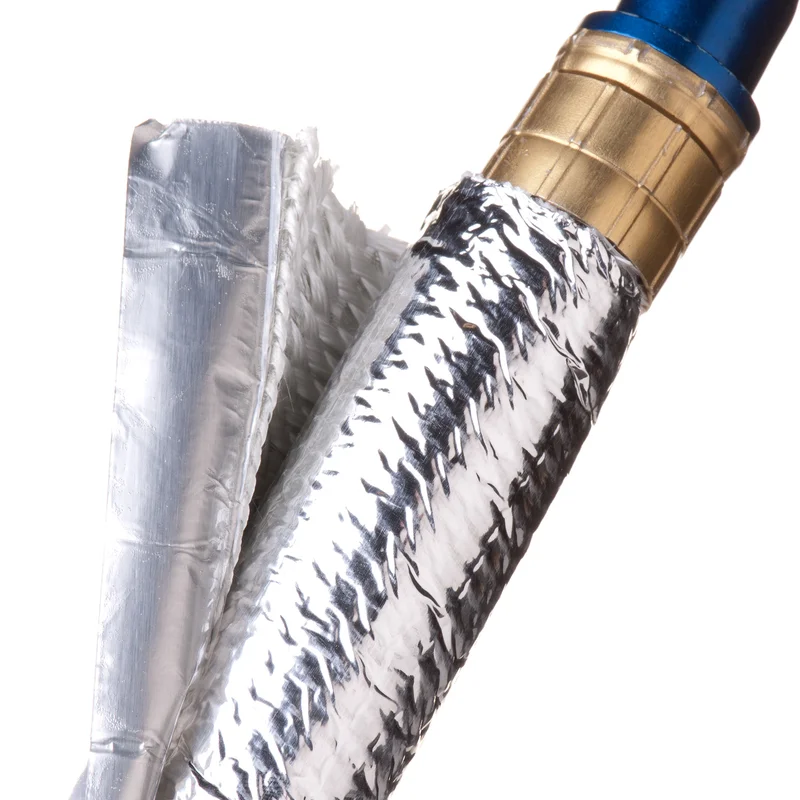

One of the most popular items in the ThermaShield line of aluminized fiberglass products, T6, is designed for ease of installation when component disassembly isnâ t practical. Just wrap the pre-formed, split flexible tube around any component and seal the sides with the high temperature adhesive strip to provide protection from hot pipes and engine components.
The highly reflective aluminized exterior, combined with the insulating fiberglass interior, protects delicate wire bundles, cables and lines from damage caused by nearby exhaust pipes, headers or other heat generating components.
ThermaShield T6 laminated sleeving is available in Silver.
Insultherm Spark Plug Boot Sleeves can rest directly on hot headers and other engine components without burning, melting or becoming brittle.
Specifications:
| Physical Properties | Operating Temperatures | |||
| Flammability Rating | Non-Flammable | Minimum Continuous | -76°F/-60°C | |
| Recommended Cutting | Scissor | Maximum Continuous (MIL-I-23053) | 392°F/200°C | |
| Colors | 1 | Melt (ASTM D-2117) | 2,048°F/1,120°C | |
| Wall Thickness | .042 | |||
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | ||||
| Aromatic Solvents | 1 | Alipahtic Solvents | 1 | |
| Chlorinated Solvents | 1 | Weak Bases | 1 | |
| Strong Bases | 1 | Salt Water (O-S-1926) | 1 | |
| Hydraulic Fluid (MIL-H-5606) | 1 | Lubricating Oil (MIL-A-8243) | 1 | |
| De-Icing Fluid (MIL-A-8243) | 1 | Strong Acids | 2 | |
| Strong Oxidants | 2 | Esters/Keytones | 1 | |
| UV Light | 1 | Petroleum | 1 | |
| Fungus (ASTM G-21) | 1 | Salts | 1 | |
| Halogen Free | Yes | RoHS | Yes | |
| UL/CSA | No |
