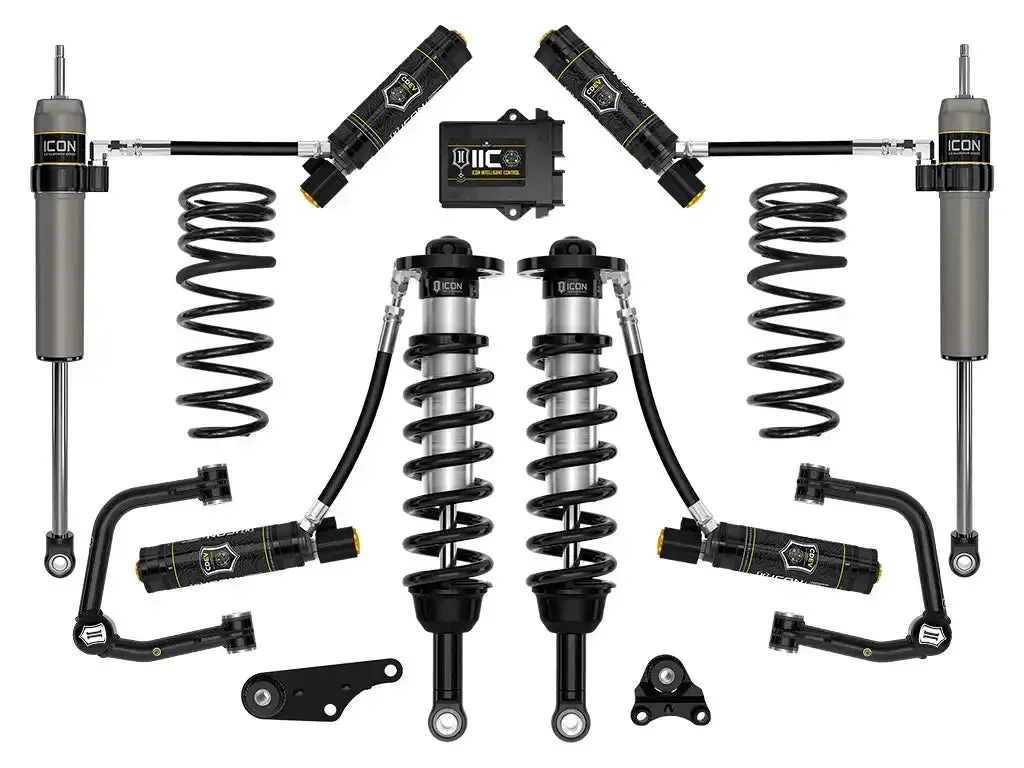

ICON Vehicle Dynamics FRDK_K53296TS ICON 2024 Toyota Tacoma 1.25-3″ Lift Stage 6 Suspension System Tubular UCA W/ Triple Rate Rear Springs-Quality Guarantee

Description

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.r

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

r

• 6061 aircraft grade aluminum CNC machined components

r

• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts

r

• ICON engineered front and rear coil springs

r

• FK Rod End bearings for extended longevity and minimal deflection

r

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts provide increased performance and balanced tune with coilovers

r

• Increased wheel travel and improved ride quality over stock

r

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

r

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes

r

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

r

• Adjustable coilovers provide 1.25-3″ front lift height over stock

r

• Tubular UCAs for added strength, durability, and alignment correction for better drivability

r

• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

r

• Triple rate rear coil springs improve performance and ride quality while providing .5″ of rear lift

r

rr

Attributes:

r

r
• GTIN: 00840103429106

r

• Brand Name: ICON Vehicle Dynamics

r

• 2064: Steel

r

• 2371: Yes

r

• 30: Yes

r

• 3096: Black

r

• 3097: Yes

r

• 3390: Performance

r

• 7325: 2

r

• 7326: 2

r

• Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT

r

• Adjustable Damping: Yes

r

• Coil Quantity Front: 2

r

• Damping Adjustment Type: Electronic

r

• Front Spring Rate Type: Linear

r

• Maximum Lift Front: 3

r

• Maximum Lift Rear: .5

r

• Minimum Lift Front: 1.25

r

• OEM Wheels & Tires Fitment: Yes

r

• Rear Spring Rate Type: Progressive Triple Rate

r

• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)

r

• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset

r

rr

Extended Information:

r

r
• Country of Origin: US

r

• Emissions : Emissions Compliance Exempt

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1.0

r

• Package UOM: EA

r

• Dimension: 27.0000 x 12.0000 x 8.0000 inches

r

• Weight: 169.0000 lb
