Description
Product

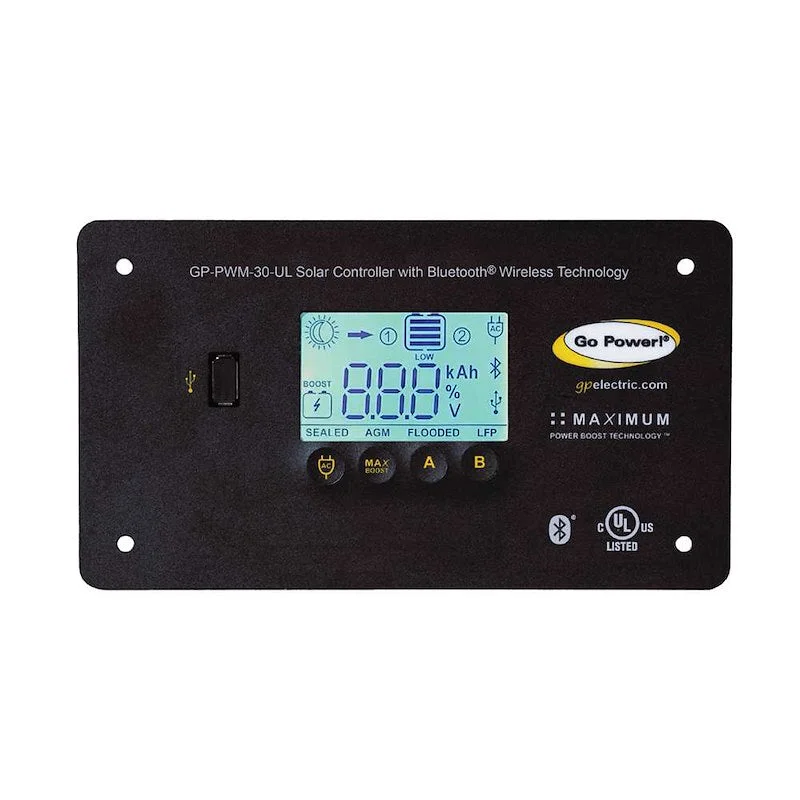

A solar charge controller is an essential component of your photovoltaic (PV) system. The controller maintains the life of the battery by protecting it from overcharging. When your battery has reached a 100 Percent state of charge, the controller prevents overcharging by limiting the current flowing into the batteries from your solar array. Our 30 Ampere Digital Solar Controller features Maximum Power Boost Technology (MPBT). This allows you to override the normal charging algorithm of the solar controller to ‘boost’ the solar charge, which is ideal at the end of the daylight to ensure batteries are topped up for the evening. Performance of the solar controller will not be affected if MPBT function is not utilized.
Battery Charger Controller; For Use With Solar 12 Volt Battery Chargers; 30 Amp; 6 To 15.5 Volt Operating Range; 4-1/4 Inch Width x 7.48 Inch Height x 1.38 Inch Depth; Built-In USB Charge Port; Bluetooth Ready
Features & Benefits
- Uses Pulse Width Modulation (PWM) Technology
- Unique Four Stage Charging System With Optional Equalize Setting, To Charge And Protect Your Battery Bank
- LCD Digital Display That Shows Solar Array Charge Current, System Battery Voltage And Battery Capacity
- Built-In USB Charge Port
- Connects Up To 600 Watts Total
- Charges 1 Or 2 Battery Banks
- Limited 5 Year Warranty
Attributes
- Compatibility: Solar 12 Volt Battery Chargers
- Type: Digital Solar Controller
- Voltage Rating: 6 To 15.5 Volt
- Ampere Rating: 30 Ampere
- Wattage: 600 Watt
- Display Type: LCD
- With LED Indicator: No
Installation Instructions
- MOBI_MAN_GP-
Technical Bulletins
- MOBI_MAN_GP-
- SPEC_GP-PWM-30-UL_RevL.pdf
