FDL FRT KIT11.00 DRILLED-Quality Guarantee

Description

Required Items

Show Cost

• Brake Line
  • Wilwood Brakes 220-7056 (W64 2207056)

    Brake Line; Flexline; For Use With Wilwood Brake Kits Only; For Use With Wilwood Brake Kits; Braided Stainless…60 total inv (10 KAO, hover for options) GreatLakes0*East0*PacificNorthwest0*Midwest0*Southeast0*Florida0*Texas4*California6***Manuf. Inv.:50*

    • In Stock As-Of:
    • **Vendor Special Order Fees:$
    • **Total fees to be shown at checkout

    * 3rd party shipping MAY be availableMy Price:$86.13 CADJobber:$101.33 CADRetail:$143.55 CAD
    Qty

  Loading results…

Attributes

• Recommended Use: Racing/ Street
• Compatibility: Factory Front Disc Spindles And Drum Spindles
• Disc Brake Pad Material: BP-10 Metallic
• Disc Brake Rotor Bolt Circle: 5 X 4-1/2 Inch
• Disc Brake Caliper Color: Black
• Disc Brake Caliper Finish: Powder Coated
• Disc Brake Caliper Material: Aluminum
• Disc Brake Caliper Number of Pistons: 4
• Disc Brake Rotor Design: Drilled And Slotted
• Disc Type: 2-Piece
• Disc Brake Pad Overall Length: 100.6 Millimeter
• Disc Brake Pad Overall Width: 60.5 Millimeter
• Disc Brake Pad Overall Thickness: 12.4 Millimeter
• Disc Brake Caliper Condition: New
• Disc Brake Rotor Finish: Electro Coated
• Disc Brake Rotor Material: Iron
• Disc Brake Rotor Outer Diameter (MM): 279.4 Millimeter
• Disc Brake Rotor Outer Diameter (IN): 11 Inch
• Nominal Thickness (MM): 20.57 Millimeter
• Nominal Thickness (IN): 0.81 Inch
• Includes Bracket: Yes
• Includes Hardware: Yes
• Includes Shims: Yes
• Includes Brake Lines: No
• Minimum Wheel Diameter: 14 Inch

Product

Wilwood’s new limited offset FDL Pro-Series Front Hub Kits for GM 1967 to 1969 F-Body and 1964 to 1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc and Drum spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11 Inch rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track by only +.19 Inch from original drum brake position or narrows by -.31 Inch from the original disc brake rotor assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15 Inch wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.

Features & Benefits

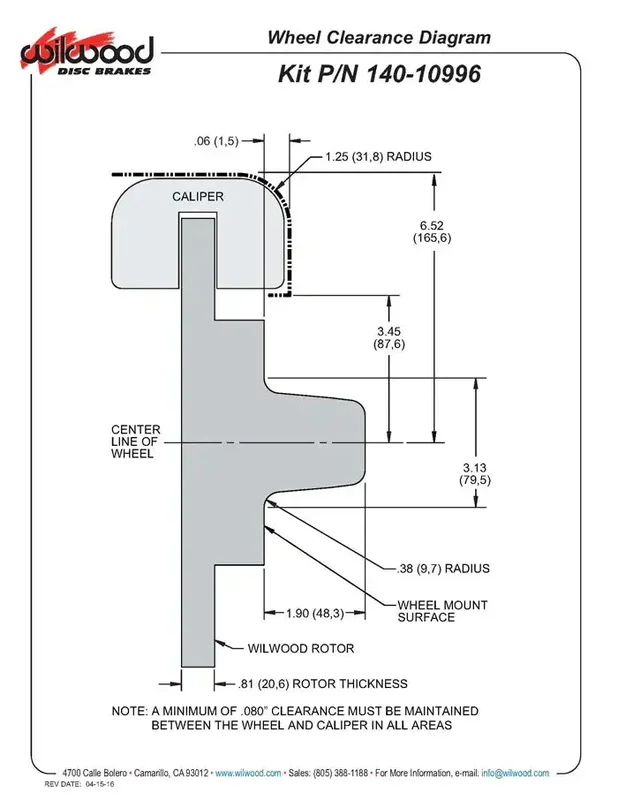

• Provide Plenty Of Clearance Inside Popular 15 Inch Wheel
• FDL Pro-Series Kits Can Be Used With Either Manual Or Power Boost Master Cylinders
• Designed For Performance And Durability
• Designed, Manufactured And Tested In The USA
• Easy Installation
• No Supplier Warranty
