Description

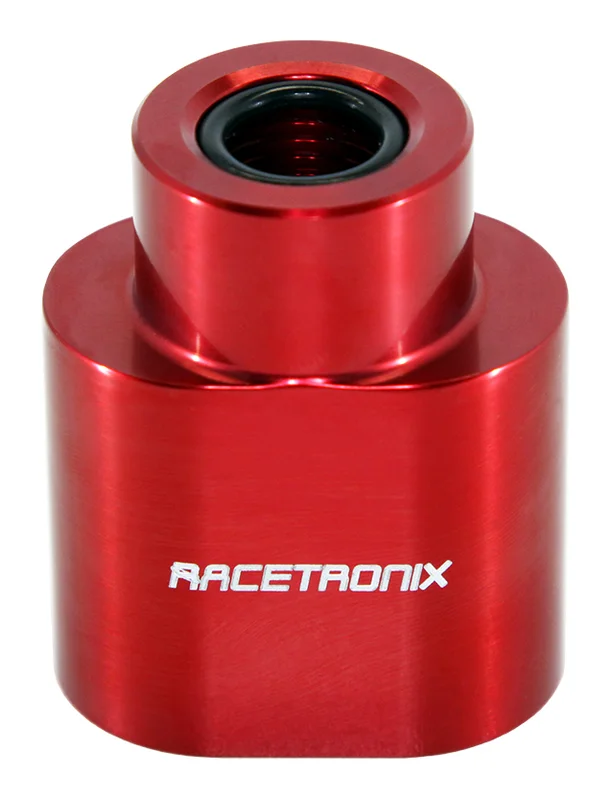

DPC-G6 – Double Pump Coupler -6 ORB, Red …
FEATURES:
-6 AN Female ORB outlet
Twin pump inlets
Viton o-rings
E-85 compatible
APPLICATIONS:
This dual pump coupler is designed to couple two pumps side by side for increased flow. The DPC-G6 is designed to work with our DPB-002 dual pump bracket and -6 AN ORB adapters listed under add-ons only.
Please see our DPA-510E and DPA-680E assemblies for details.
The DPC-G6 is only compatible with fuel pumps with a 38mm O.D. and typical Walbro GSS-type discharge nipples. This is a list of common pumps which are compatible*:
Walbro 255LPH GSS307M, GSS340M, GSS294M
Racetronix RXP255E, RXP340E
AM Stealth Non-E85 P/N 11140
Pumps with a 22mm center inlet listed above are compatible with the DPC-G6 and DPB-002. Other 38mm OD pumps do not have inlets which are compatible with our DPB-001.
This coupler is not compatible with Walbro F90000267, F90000274, F90000285 or other brands of 450/525 LPH pumps due to the side-by-side diameter/spacing of the pumps.
