Description
Product

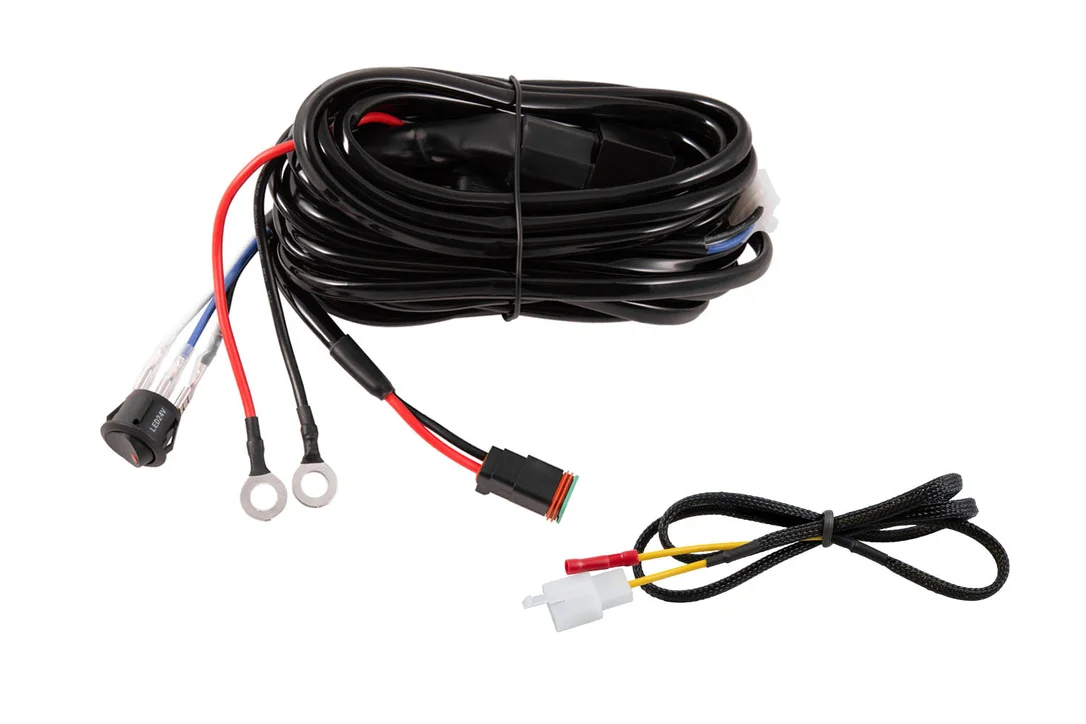

This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle’s battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.
Light Bar Wiring Harness; For Diode Dynamics Stage Series Light Bars And LED Pods; Heavy Duty Single Output 2 Pin Harness; With One Toggle Switch/ 12V Relay And 30/ 60 Amps Waterproof Fuse
Features & Benefits
- Powers Diode Dynamics Stage Series Light Bars And LED Pods
- Connects Directly To The Battery To Power Your Light
- High Capacity 14AWG Wiring
- Deutsch DT Output Connector
- Black Wire Sheathing To Protect Cables
- 30 Ampere, Waterproof Fuse And 60 Ampere, 12 Volt Relay To Safeguard The Electrical Systems In Your Light
- Limited 3 Year Warranty
Attributes
- Compatibility: Diode Dynamics Stage Series Light Bars And LED Pods
- With Switch: Yes
- With Relay: Yes
- Estimated Install Time (Hours): 1
Installation Instructions
- Stage_Series_installation_guide_single_heavy_duty.pdf
Warranties
- Warranty-Diode
Specifications:
| _ASC | Included in the box: One (1) wiring harness. One (1) toggle switch. |
| _DEF | Wiring Accessory Kit |
| _DES | Powers up to one 50” 42” 30 and 18″ Stage Series light bar.” |
| _EXT | Power up to one Diode Dynamics 50” 42” 30 and 18″ light bar. Connects directly to the battery. High capacity 14AWG wiring. Dual Deutsch DT output connectors. Black wire sheathing to protect cable. 25A waterproof fuse and 60 amp 12V relay. |
| _INV | Diode Dynamics Accessories |
| _MKT | Powers up to one;Diode Dynamics 50” 42” 30 and 18″ Stage Series light bar.;Connects directly to the;battery to power your light bar. High capacity 14AWG wiring. Dual Deutsch DT output connectors. Black wire sheathing to protect cables. 25A waterproof fuse and 60 amp 12V relay.” |
| _SHO | Accessories |
