Connector Set, 4-Way MP150/280-Quality Guarantee

Description

RCS-032 – Connector Set, M/P 280/150 US, Female
This weatherproof connector set is recommended for the following medium-currect applications:

GM Fuel Pump Modules

SPECIFICATIONS (KIT):

WIRE GAUGE (AWG): 12 Max.

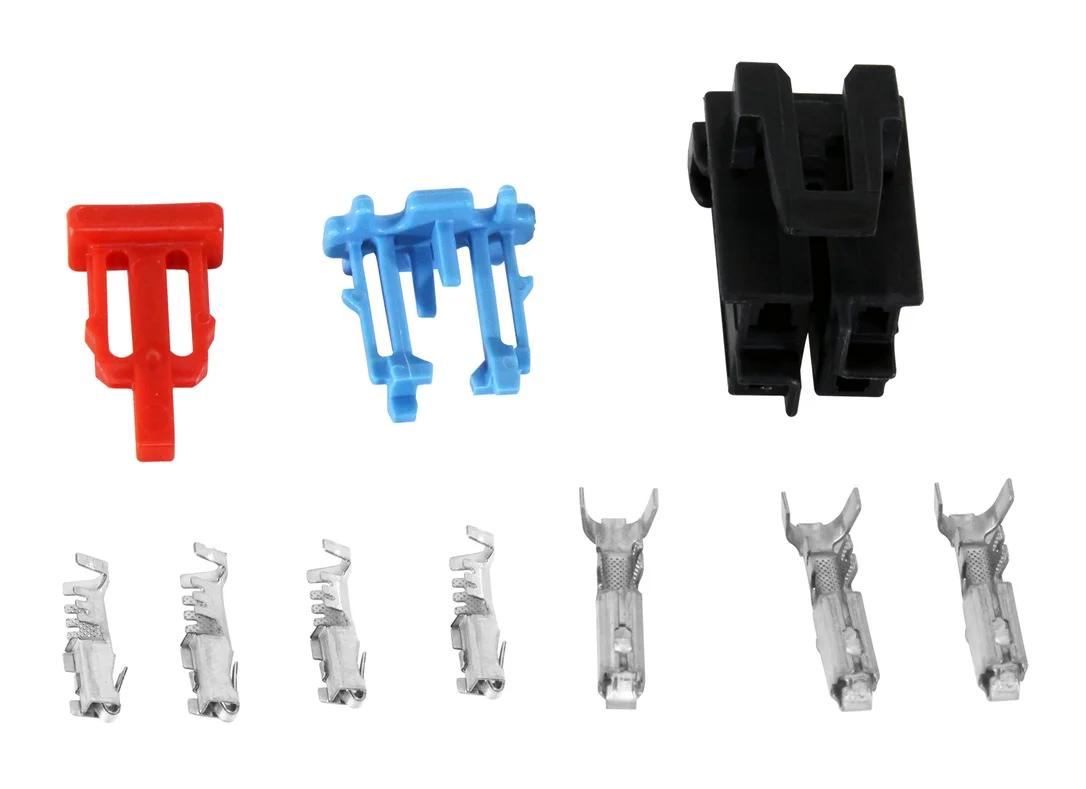

KIT INCLUDES:

1 x Female Connector Body

1 x Terminal Locks

3 x 150 Female Terminals (1 spare)

3 x 280 Female Terminals (1 spare)

NOTE: Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFACTIONS:

CURRENT RANGE (AMPS): 0-14

TEMP RANGE °C: -40 to 125

RESISTANCE: mOhm@20mV

VOLTAGE DROP:

CENTERLINE SPACING (mm): 6.0

BLADE WIDTH (mm): 1.5

CURRENT RANGE (AMPS): 0-30

TEMP RANGE °C: -40 to 125

RESISTANCE: mOhm@20mV

VOLTAGE DROP:

CENTERLINE SPACING (mm): 7.7

BLADE WIDTH (mm): 2.8
