Description

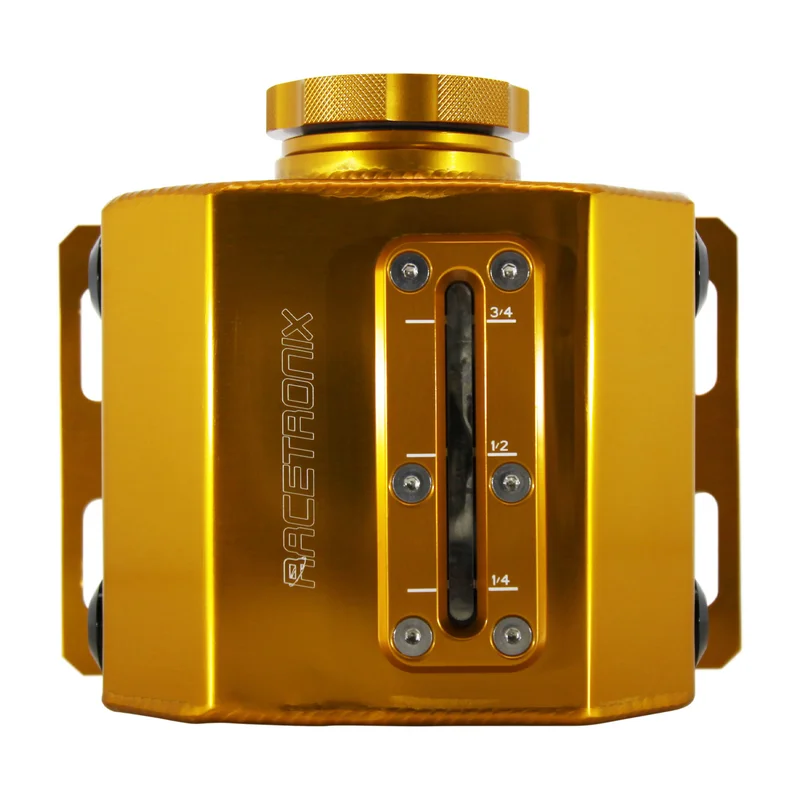

TANK-CT1L8GGD – Catch Tank, 1 Liter Level Window, Billet Fill Cap, Drain, Gold
FEATURES:
1 Liter capacity
Glass level window with serviceable seal
-20 ORB gasketed billet fill cap with sintered brass vent (1/8″ FPT thread)
-10 ORB drain plug (bottom)
2 + 2 -8 / -6 ORB ports per side all fitted with -8 and -6 ORB plugs.
Integrated mounting bracket
TIG Welded
Gold anodized T6 aluminum
The Racetronix catch tank is a very versatile unit with multiple ports. This allows the user to configure it for the required application/environment.
There are two -8 ORB and two -6 ORB ports on either side and a single -10 ORB drain on the bottom.
A billet aluminum -20 ORB fill cap is equipped with a brass breather vent on the underside using a 1/8″ FPT thread which may be plugged if required.
All ports are fitted with ORB flush Allen head plugs.
The glass level window provides excellent fluid level visibility and is resistant to most liquids (unlike plastic level tubes). The glass is sealed in a removable frame with a serviceable gasket.
All joints are TIG welded. Pressure tested to 30 PSI.
Note: Slight imperfections in the aluminum surface may be visible due to the grain and the manufacturing process.
